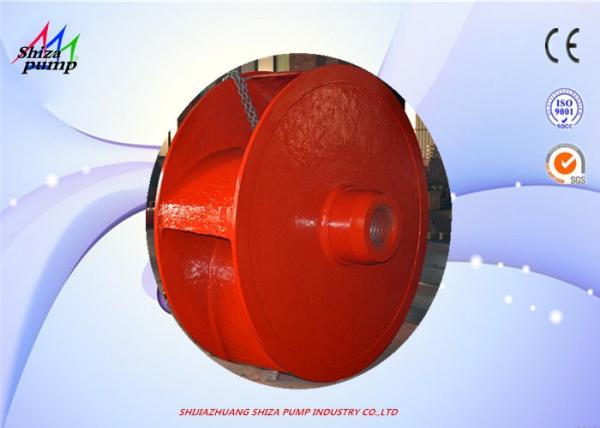

300DT - A60 Pump Impeller Parts, High Chrome Casting Parts, Slurry Pump Parts
Overview
1. SHIZA brand slurry pump spare parts are made of high chromium alloy A05 which has superior wear
and corrosive resistance as well as rubber liners parts made of high quality natrual rubber to
transport the medium with light abrasion and non-sharp solids liquid and have small corrosive liquid.
2. The role of the impeller is to transfer the mechanical energy of the motor directly to the liquid to increase the static
pressure and dynamic pressure of the liquid.
3. We do standard chrome alloy materials or rubber parts OEM .
-tell me the standard code no .we can quote you price immediately .
-Tell me your requirements and can customize spare parts for you.
The pump parts can be made of high chrome, rubber or ceramic materials for longer service life and higher efficiency.
Materials Offered:
-High Chrome Cast Iron
-Ductile Iron
-Stainless Steel
-Natural Rubber
-Specific Rubber
-Polyurethane
Pump replaced parts material:
1) Material: D21, G01, A05...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42, S50, U01, EPDM, PU, CR...
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |
| 1 | Impeller | | A05(Cr27) | A49,Rubber,304,316 |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | | Assorted | |
DT Series Pump Construction Drawing
Shijiazhuang Shiza Pump Industry Co.Ltd founded in 2008 ,is a professional high-tech industrial pump manufacturer.
Our products include AH series slurry pump, submersible slurry pump ,Submerged pump, sand gravel pump ,
desulfurization pump, froth pump , sewage pump, OEM, etc .
Product Tags:
|
|
300DT - A60 Pump Impeller Parts, High Chrome Casting Parts, parts of centrifugal pump Images
|
